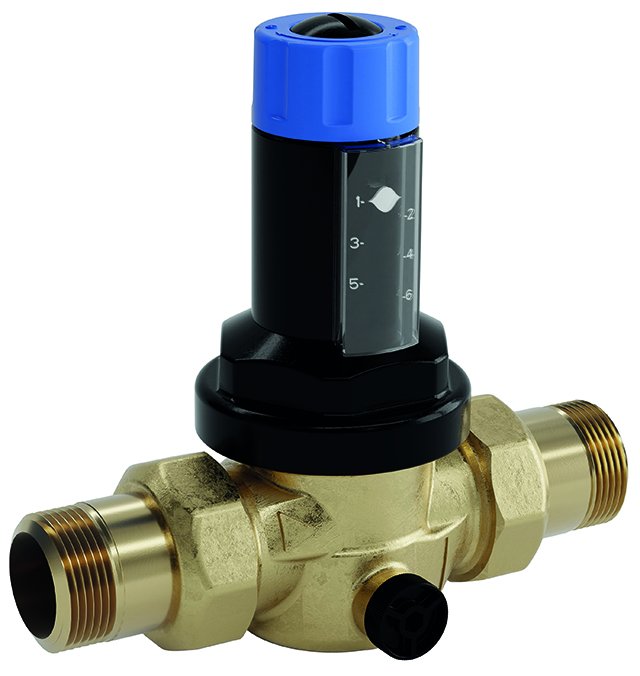

COMFORT Pressure Reducer No. 315 2 A25 1.5 - 6 bar 0315 LF

The pressure reducing valve No. 315 2 A25 1.5 - 6 bar Lead Free is primarily used in drinking water supply systems according to DIN 1988. In accordance with its specifications, it also protects industrial and commercial facilities from excessive supply pressure. The 315 pressure reducer protects water supply systems and effectively prevents damage that can arise from pressure increases by balancing and optimizing fluctuating inlet pressures. Furthermore, it economically and environmentally friendly reduces water consumption. Model 315 A25 meets the sound insulation requirements according to DIN 4109 (Sound insulation in building construction) Class 1 without restrictions.\nThe 315 A25 pressure reducer is equipped with a vertical, rotatable outlet pressure display that shows the set pressure. This means that an additional manometer is not required. The spring cap is 360 degrees rotatable, so the pressure display is always visible. The 315 pressure reducer complies with DIN EN 1567 and DVGW requirements from DN 15 to DN 50. It is sound-tested according to Class 1. The 315 A25 pressure reducer is equipped with a balanced single-seat valve and a coaxially arranged dirt trap (mesh size: 0.25 mm). The housing is made of lead-free brass, and the cap is made of glass-fiber reinforced plastic.\nThe functional parts of the system are arranged in a cartridge, which can be completely replaced without removing the fitting and without special tools, while maintaining the same outlet pressure. The installation position can be chosen arbitrarily due to the special cartridge design. DN 50, G 2.\n\nTechnical Data:\n Max. Inlet pressure: 16 bar\n Outlet pressure: 1.5 - 6 bar (factory setting: 4 bar)\n Max. Operating temperature: 30 °C\n Installation position: any\n Flow rate: 14.0 m³/h at Δp 1.1 bar\n Medium: Water, compressed air, neutral, non-adhesive liquids, neutral gases
