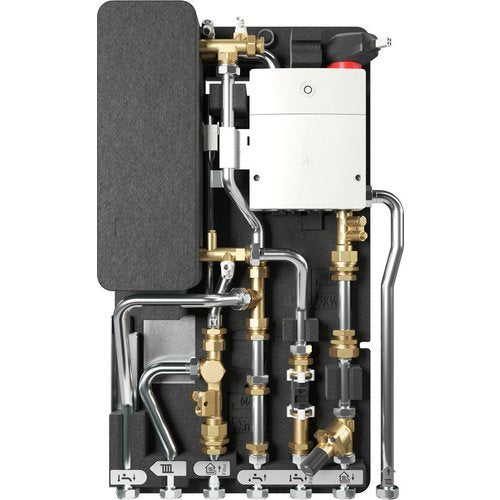

BOSCH Apartment Station FLOW7002 45 HPS 45 kW, downstream water heating

Type: F7002 45 HPS
*General data
Min. heating capacity: 0 kW
Max. heating capacity: 6 kW
Max. heating water temperature: 55 °C
Max. heating operating pressure: 10 bar
Max. continuous hot water output: 44 kW
Min. outlet temperature: 30 °C
Max. outlet temperature: 60 °C
Max. volume flow for hot water preparation (primary): 1470 l/h
Pressure loss hot water KVS: 1.07 m³/h
Max. outlet volume: 18 l/min
Min. hot water connection pressure: 2631 mbar
Max. hot water operating pressure: 10 bar
Max. hot water volume flow dT = 35 K (45/50/10 °C): 14 l/min
Max. primary volume flow (45/50/10 °C): 1470 l/h
Return temperature in the primary circuit dT = 35 K (45/50/10 °C): 30 °C
Pressure loss in the primary circuit dT = 5 K (45/50/10 °C): 640 mbar
Hot water output at dT = 35 K (45/50/10 °C): 34 kW
Max. hot water volume flow dT = 35 K (45/55/10 °C): 18 l/min
Max. primary volume flow (45/55/10 °C): 1375 l/h
Return temperature in the primary circuit dT = 35 K (45/55/10 °C): 27.3 °C
Pressure loss (primary circuit) at dT = 10 K (45/55/10 °C): 559.0 mbar
Hot water output at dT = 35 K (45/55/10 °C): 44 kW
Max. hot water volume flow in combination with DLE (45/35/10 °C): 12 l/min
Max. hot water volume flow in combination with DLE (45/40/10 °C): 17 l/min
Max. hot water volume flow in combination with DLE (45/45/10 °C): 18 l/min
Total output hot water and heating: 50 kW
Max. operating pressure (primary circuit): 10 bar
Max. flow temperature (primary): 55.0 °C
Pressure loss (primary circuit) KVS: 1.8 m³/h
Nominal voltage: 230 V
Electrical frequency: 50 Hz
Connection type 1: 1/N/PE
Protection class (EN 60529): IPX4
Protection class (EN 61140): II
Standby power consumption: 3.8 W
Height: 666 mm
Width: 420 mm
Depth: 145 mm
Net weight: 8.8 kg
Connection for heating flow/return: 3/4 inch
Connection for flow and return: 3/4 inch
Primary circuit connection: 3/4 inch
*Approvals and quality marks
CE mark: CE
Manufacturer: Bosch Thermotechnik GmbH
Type: F7002 45 HPS
Order no.: 7735600755
Packaging dimensions: 145x408x666 mm
Total weight incl. packaging: 10.16 kg
