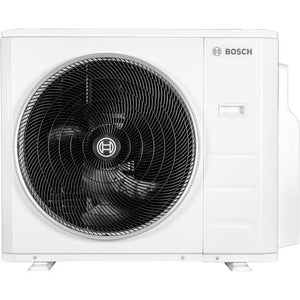

BOSCH Air Conditioner CL7000M 53/2 E Multi-Split Outdoor Unit 810x946x410 white

Product type: CL7000iM 53/2 E
*General data
Color: White
Suitable fuels: Electric current
Type of device: Outdoor unit
Max. number of indoor units: 2
Compressor type: Rotary compressor
*Operating data: Heating
Min. heating capacity: 1.47 kW
Max. heating capacity: 6.74 kW
Rated heating capacity: 5.3 kW
Design load, average climate: 4.3 kW
Max. power consumption: 3.05 kW
SCOP/A average climate: 4.6 kW
Min. operating temperature heating: -15 °C
Max. operating temperature heating: 24 °C
Rated outdoor air flow: 3000 m³/h
Sound power level indoors in heating mode: 58 dB(A)
Sound power level outdoors in heating mode: 66 dB(A)
Sound pressure level outdoors heating: 52.5 dB(A)
*Operating data: Cooling
Rated cooling capacity: 5.28 kW
Min. cooling capacity: 2.2 kW
Max. cooling capacity: 6.39 kW
Rated cooling capacity: 5.3 kW
Design load Pdesignc: 5.3 kW
Coefficient of performance in cooling mode: 8.5
Min. operating temperature cooling: -15 °C
Max. operating temperature cooling: 50 °C
Sound power level indoors in cooling mode: 58 dB(A)
Sound power level outdoors in cooling mode: 65 dB(A)
Sound pressure level outdoors cooling: 59 dB(A)
Refrigerant additional charge: 12 g/m
*Electrical data
Connection voltage: 220 V
Number of phases of power connection: 1 Phase
Electrical frequency of power connection: 50 Hz
Protection class (EN 60529): IPX4
Rated power consumption: 3050 W
Rated current: 13 A
*Dimensions/Weights
Height: 673 mm
Width: 890 mm
Depth: 342 mm
Net weight: 43.3 kg
Max. height difference between indoor and outdoor unit: 15 m
Max. permissible distance between indoor and outdoor unit: 25 m
Suction gas line diameter: 2x 9.52 mm
Liquid line diameter: 2x 6.35 mm
*EU Directive for Energy Efficiency – Combination of Outdoor and Indoor Units
Model identification of the air conditioner indoor units: 7733702576 (2x)
Model identification of the air conditioner outdoor unit: 7733703620
Sound power level outdoors in cooling mode: 65 dB
Sound power level outdoors in heating mode: 66 dB
Rated cooling capacity: 5.3 kW
Refrigerant type: R32
Design load Pdesignc: 5.3 kW
Coefficient of performance in cooling mode: 8.5
Efficiency class cooling mode: A+++
Spectrum: A+++ -> D
SCOP/A average climate: 4.6
Efficiency class heating mode, average climate: A++
Design load, average climate: 4.3 kW
Cooling: Yes
Heating: Yes
Rated outdoor air flow: 3000 m³/h
*Information relating to EU F-GAS Regulation 517/2014
Environmental note: Contains fluorinated greenhouse gases
Refrigerant type: R32
Global warming potential of the refrigerant: 675 kgCO2-eq
Refrigerant charge: 1.5 kg
CO2 equivalent of the refrigerant charge: 1.01 toCO2-eq
Design of the refrigeration circuit: Not hermetically sealed
Manufacturer: Bosch Thermotechnik GmbH
Order no.: 7733703620
Packaging dimensions: 890x342x673 mm
Total weight including packaging: 47.1 kg
