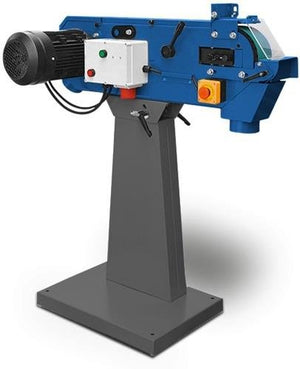

Belt Grinder MBSM 75-203-1 75-2000 mm METALLKRAFT

For grinding surfaces and edges and for rounding. Powerful motor and vibration-free operation for best grinding results. Continuous flat grinding surface due to removable attachments allows grinding even long workpieces. Quick-clamping system allows quick abrasive belt changes. One extraction nozzle directly on the spark box and on the rear belt roller. Can be used with and without extraction. Simple adjustment of the belt run via adjustment screw on the front contact roller. Automatic retensioning of the abrasive belt by spring-supported belt tensioning system. Continuously tiltable grinding unit. Fold-away protective screen. Further technical features: · Contact wheel dimension-Ø: 200mm · Drive wheel diameter: 200mm · Emission sound pressure level at the workplace Lp (idle without: 87dB(A) · Graphite pad width: 75mm · Graphite pad length: 495mm · Drive motor power: 3.3kW · Nominal diameter of extraction nozzle outside: 2 × 100mm · Mains frequency: 50Hz · Protection class: IP54 · Max. grinding width: 75mm Scope of delivery: Abrasive belt K80
