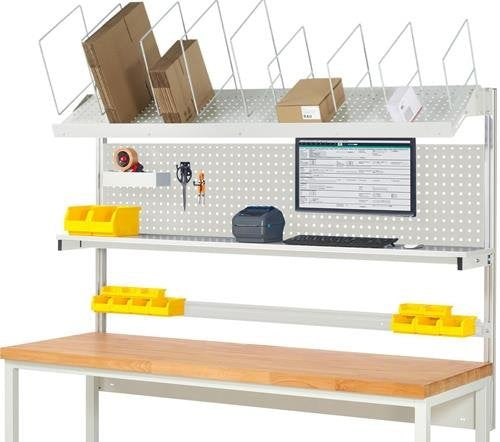

Add-on shelf W2000xD650xH1130mm light grey RAL7035 complete set 03 RAU

System Structure - Complete Set 03 · the mounting kit (cross beam) is attached at the back under the worktop to the system base unit · the 2 system supports (aluminum profile 40x40 mm) are screwed to the mounting kit (cross beam) using T-slot nuts (height adjustable) and extend upwards behind the worktop, so that the entire depth of the worktop remains free (no screwing onto the worktop) · the system supports have a profile groove on all 4 sides, allowing for all-round use · the 2 system supports are screwed on at the outer left and right · usable height 1130 (from top edge of worktop) · 1 x mounting kit (cross beam) with 2 system supports · 1 x perforated panel · with square system perforations for accommodating perforated panel accessories · 1 x shelf, melamine resin-coated board · 1 x mounting rail for accommodating storage bins (open hanging edge on the back of the storage bins required) and/or power strip · 1 x flat screen holder with mounting adapter for perforated panel · 1 x carton magazine, tiltable · stepless tilt adjustment from 0°-30° · including carton holder · installation height of the add-on elements adjustable within the system supports · total load capacity max. 100 kg · load capacity max. 30 kg per add-on element · delivery partially assembled · powder coating
